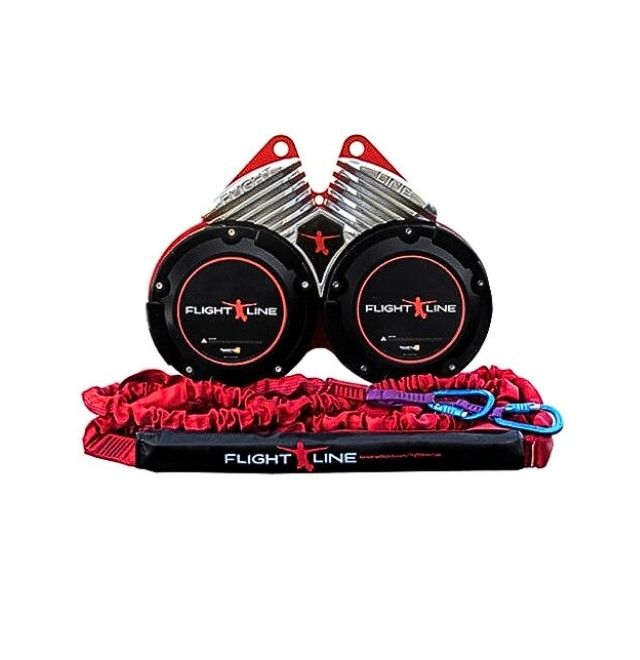

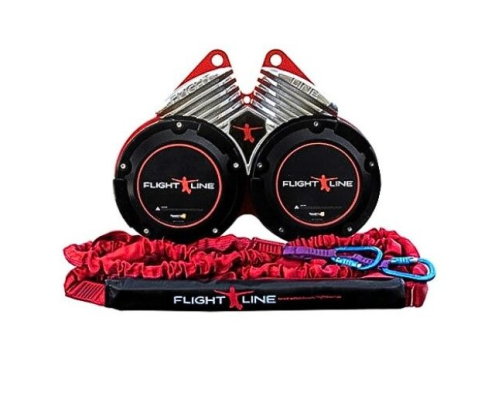

FlightLine Free Fall Device

FlightLine is the next step in the evolution of free fall devices. It provides an extended, true free fall sensation and incorporates our advanced magnetic braking technology for a smooth catch to offer thrill seekers a one-of-a-kind experience

Product Details

Designed for high throughput, FlightLine features an exhilarating, true free fall with a soft catch and eddy current magnetic braking for smooth and consistent braking, as well as staged universal braking system for a variety of user weights.

Extended Free Fall

Participants get plenty of air time with FlightLine, up to 11m (36 ft) of free fall! FlightLine is great as a standalone element or to add extra “wow” factor to an existing adventure experience.

High Throughput

The FlightLine retracts quickly and allows for high guest throughput. The throughput is higher than alternatives (e.g. bungee jumps) and offers the same thrilling free fall.

Staged Magnetic Braking

Head Rush’s patented magnetic eddy current braking technology is extremely reliable and creates an amazingly soft catch. The dual braking system in FlightLine engages in two stages so the catch is smooth and gentle.

Multiple Mounting Configurations

An optional “jump-over” configuration allows participants to jump from a platform with the device mounted beneath them. This increases the free fall distance and ups the thrill factor. Two ripcord lengths allow additional customization of the FlightLine Free Fall experience.

Minimal Maintenance

Head Rush’s patented magnetic eddy current braking technology is extremely reliable and provides a low cost of ownership. There are no contacting parts in the braking system, and there is less wear because the braking does not involve any friction.

Modular & Compact

Add extreme thrills in an amazingly small footprint. FlightLine requires a platform or tower at least 18.5m (60 ft) tall, but then the modular device is easy to install and operate.

Specifications

- - FlightLine with 4.5m RipCord

    Specifications
    - Dimensions: 615 x 457 x 234 mm (24.2 x 18 x 9.2 in)
    - Device Weight: 59 kg (130 lbs)
    - Rated Working Capacity: 34 to 113 kg (75 to 250 lbs)
    Standard Configuration
    - Minimum Mounting Height*: 18.5 m (60 ft)
    - Maximum Mounting Height*: 23 m (75 ft)
    - Minimum Distance – Nozzle to Platform: 1.8 m (6 ft)
    - Maximum Distance – Nozzle to Platform: 2.1 m (7 ft)
    Jump Over Configuration
    - Minimum Mounting Height*: 21 m (69 ft)
    - Maximum Mounting Height*: 23 m (75 ft)
    - Maximum Distance – Nozzle to Platform: 1.2 m (4 ft)
    * This distance is from the device nozzle to the landing zone and is dependent on the RipCord length. Mounting heights are subject to change.

    FlightLine with a 4.5m RipCord provides a free fall of approximately 4.5 m (15 ft).

    FlightLine with 6.0m RipCord

    Specifications
    - Dimensions: 615 x 457 x 234 mm (24.2 x 18 x 9.2 in)
    - Device Weight: 59 kg (130 lbs)
    - Rated Working Capacity: 34 to 130 kg (75 to 285 lbs)
    Standard Configuration
    - Minimum Mounting Height*: 20 m (65 ft)
    - Maximum Mounting Height*: 24.5 m (80 ft)
    - Minimum Distance – Nozzle to Platform: 1.8 m (6 ft)
    - Maximum Distance – Nozzle to Platform: 2.1 m (7 ft)
    Jump Over Configuration
    - Minimum Mounting Height*: 23 m (75 ft)
    - Maximum Mounting Height*: 24.5 m (80 ft)
    - Maximum Distance – Nozzle to Platform: 1.2 m (4 ft)
    * This distance is from the device nozzle to the landing zone and is dependent on the RipCord length. Mounting heights are subject to change.

    FlightLine with a 6.0m RipCord provides a free fall of approximately 8m (26 ft).
